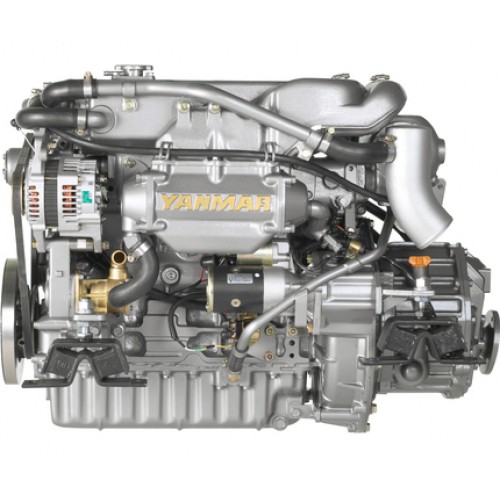

Yanmar 4JH3-DTE 125 HP Marine Diesel Inboard
With their economical operation and reduced downtime, it's little wonder that successful water sports professionals rely on Yanmar for enduring power.
Specifications:
Combustion System: Direct Injection
Cylinders: 4
Direction Of Rotation [Crankshaft]: Counterclockwise Viewed From Stern
Lubrication System: Enclosed, Forced Lubricating System
Starting System: Electric Starting 12V - 1.4 kW
Configuration: 4-Stroke, Vertical, Water-Cooled Diesel Engine
Maximum Output At Crankshaft: * 89.1 kW@3800 rpm [121 mhp@3800 rpm], ** 91.9 kW@3800 rpm [125 mhp@3800 rpm]
Displacement: 1.995 ltr [122 cu in]
Bore X Stroke: 84 mm x 90 mm [3.31 in x 3.54 in]
Aspiration: Turbocharged With Intercooler
Alternator: 12V - 80A
Cooling System: Fresh Water Cooling By Centrifugal Fresh Water Pump And Rubber Impeller Sea Water Pump
Dry Weight Without Gear: 229 kg [504.8 lbs]
Engine Mounting: Rubber Type Flexible Mounting
Factory Warranty: 5 Years
Package Include:
- Set of flexible mounts
- Exhaust mixing elbow [L-type]
- Belt safety cover
- Expansion tank for fresh water cooling system
- Alternator 12V - 125A
- Electric stop solenoid
- Operation manual
- B20-panel
- Sensor for instrument panel
- Choice Of Transmissions: KMH4A [down angle: 8º] or ZF25A [down angle: 8º]
